Description

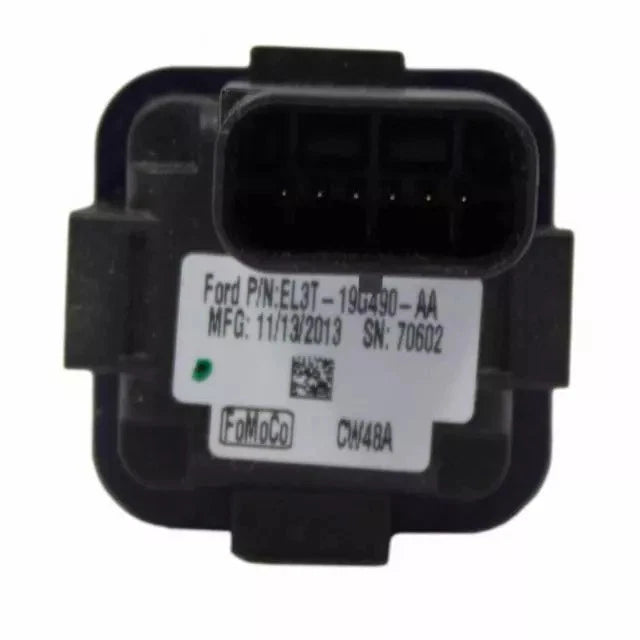

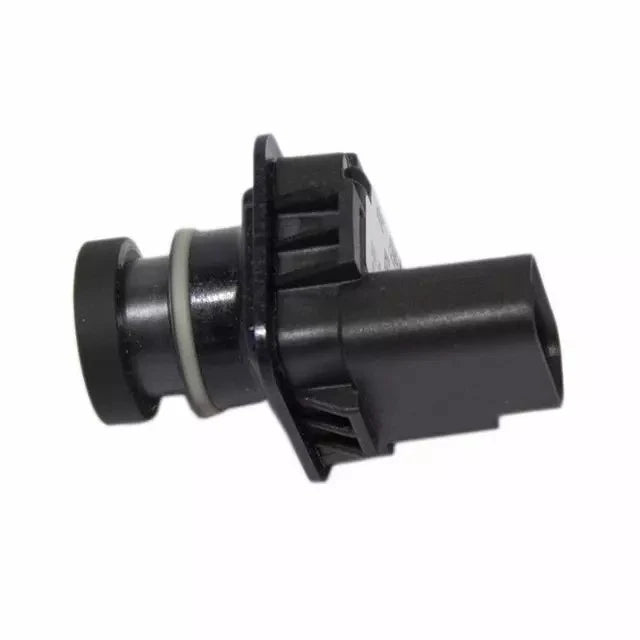

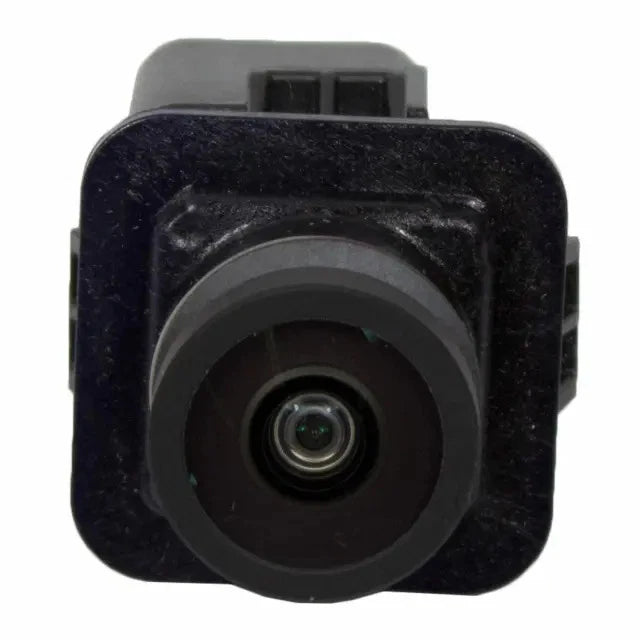

The EL3Z-19G490-D Genuine Ford Rear Camera Assembly is designed for the factory rearview camera system on 2012–2014 Ford F-150 trucks equipped with the 5.5-foot Styleside cargo box, providing video input from the rear of the vehicle to the corresponding in-cabin display during reversing operations. Its compact imaging unit mounts within the designated rear camera location and connects to the existing vehicle wiring, allowing the driver to observe obstacles, monitor available clearance behind the truck, and evaluate the surrounding area while maneuvering in parking spaces or restricted work areas.
Vehicle Compatibility
| Year |
Vehicle |
Engine |
Trims |
| 2014 |
Ford F-150 |
3.5L V6 Gas / 3.7L V6 CNG / 3.7L V6 Flex / 3.7L V6 LPG / 5.0L V8 Flex / 6.2L V8 Gas |
FX2, FX4, King Ranch, Lariat, Limited, Platinum, STX, SVT Raptor, XL, XLT |
| 2013 |
Ford F-150 |
3.5L V6 Gas / 3.7L V6 Flex / 5.0L V8 Flex / 6.2L V8 Gas |
FX2, FX4, King Ranch, Lariat, Limited, Platinum, STX, SVT Raptor, XL, XLT |
| 2012 |
Ford F-150 |
3.5L V6 Gas / 3.7L V6 Flex / 5.0L V8 Flex / 6.2L V8 Gas |
FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Platinum, STX, SVT Raptor, XL, XLT |
General Specifications
| Condition |
New |
| Part Number |
EL3Z-19G490-D |
| Brand |
Ford |
| Part Type |
Rear Camera / Camera Assembly |
| Base Number |
19G490 |
| Years |
2012–2014 |
| Vehicle |
Ford F-150 |
| Engine |
3.5L V6 Gas / 3.7L V6 CNG / 3.7L V6 Flex / 3.7L V6 LPG / 5.0L V8 Flex / 6.2L V8 Gas |
| Position |
Rear Exterior |
| Cargo Box Configuration |
5.5-Foot Styleside Box |
| Camera System |
Factory Rearview Camera |
| Fitment Type |
Direct Replacement |
| Dimensions |
3.5 x 1.5 x 1.6 inches |
| Weight |
0.64 lbs |
Product Features
The EL3Z-19G490-D Rear Camera Assembly supplies rearward video information to the designated Ford F-150 factory viewing system through its compact camera housing, rear mounting arrangement, and corresponding electrical connection:
-
Captures rearward images from the designated camera position on the truck
-
Supports observation of obstacles located behind the cargo box during reversing
-
Transmits video information through the existing factory camera electrical connection
-
Maintains the camera viewing direction within the specified rear mounting configuration
-
Assists with evaluating available clearance when backing toward stationary objects
-
Accommodates the corresponding rear camera equipment used with the Styleside cargo box
Application Notes
The EL3Z-19G490-D Rear Camera Assembly is intended for specified 2012–2014 Ford F-150 trucks equipped with the factory rearview camera system and 5.5-foot Styleside cargo box configuration, with application determined by the original camera mounting arrangement and installed vehicle equipment. Installation requires checking the rear camera housing, electrical connector, display compatibility, and mounting provisions, followed by confirmation of image operation and any applicable camera configuration procedures.
Always verify vehicle model year, trim level, 5.5-foot Styleside box configuration, factory camera equipment, mounting location, electrical connector, and display compatibility before installation.
