FL3Z-9D683-C Genuine Ford Fuel Tube Assembly For F-150 2.7L 3.5L 5.0L

FL3Z-9D683-C Genuine Ford Fuel Tube Assembly For F-150 2.7L 3.5L 5.0L

Name: FL3Z-9D683-C Genuine Ford Fuel Tube Assembly For F-150 2.7L 3.5L 5.0L
Brand: Ford
SKU: FL3Z-9D683-C
Price: 386.00 USD
Availability: InStock

P/N: FL3Z-9D683-C Manufactured by: Ford

$386.00 - $386.00

$386.00

$386.00 - $386.00

$386.00

4 in Stock

Condition: New

We accept:

Need help choosing the right part?Contact our support team

+1 828-705-1030

Monday – Saturday | 8:00 AM – 8:00 PM (EST)

2-3 Day Free Shipping

Return within 30-Days

Packed Ready to Ship

24/7 Expert Support

2-Year Warranty

Unit Auto Parts LLC provides a complimentary 2-Year Warranty on all automotive parts. Shop with confidence knowing your purchase is protected. Learn More

Description

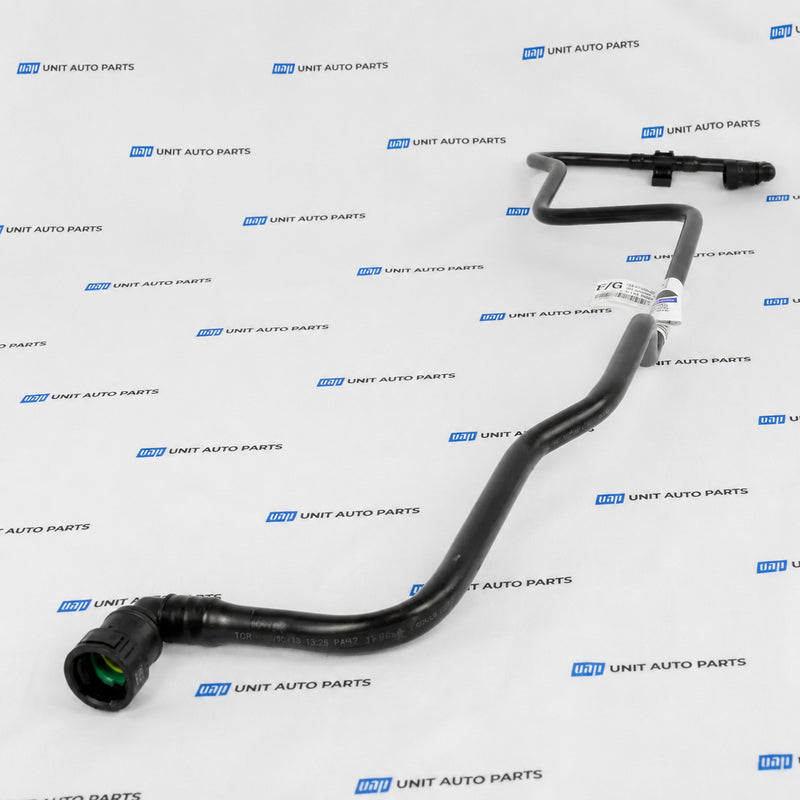

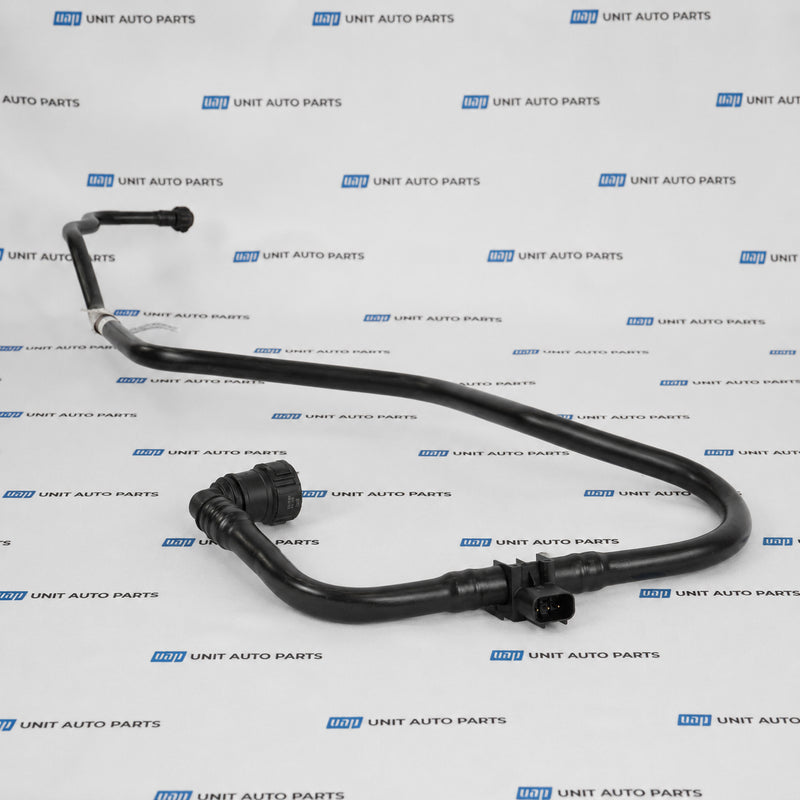

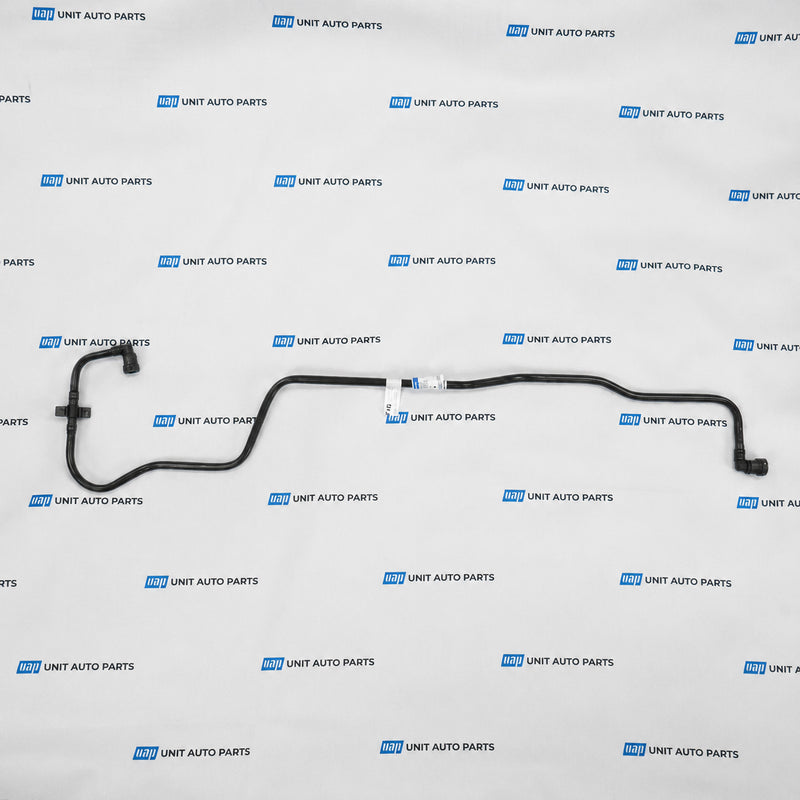

The FL3Z-9D683-C is a genuine Ford fuel tube assembly for specified 2015–2017 Ford F-150 trucks with 2.7L V6, 3.5L V6, and 5.0L V8 engine configurations. It carries fuel through the factory fuel system using the original routing and connection points while incorporating the pressure transducer into the assembly.

Vehicle Compatibility

Year	Vehicle	Engine	Trims
2017	Ford F-150	2.7L V6 Gas Turbocharged; 3.5L V6 Gas/Flex; 3.5L V6 Gas Turbocharged; 5.0L V8 Gas/Flex	King Ranch, Lariat, Limited, Platinum, Raptor, SSV, XL, XLT; Crew Cab, Extended Cab and Standard Cab
2016	Ford F-150	2.7L V6 Gas Turbocharged; 3.5L V6 Gas/Flex; 3.5L V6 Gas Turbocharged; 5.0L V8 Gas/Flex	King Ranch, Lariat, Limited, Platinum, SSV, XL, XLT; Crew Cab, Extended Cab and Standard Cab
2015	Ford F-150	2.7L V6 Gas Turbocharged; 3.5L V6 Gas/Flex; 3.5L V6 Gas Turbocharged; 5.0L V8 Gas/Flex	King Ranch, Lariat, Platinum, XL, XLT; Crew Cab, Extended Cab and Standard Cab

General Specifications

Condition	New
Part Number	FL3Z-9D683-C
Brand	Ford
Part Type	Fuel Tube Assembly
Years	2015–2017
Vehicle	Ford F-150
Engine Compatibility	2.7L V6 Gas Turbocharged, 3.5L V6 Gas/Flex, 3.5L V6 Gas Turbocharged, 5.0L V8 Gas/Flex
Included Component	Pressure Transducer
Dimensions	78.1 × 24.9 × 2.3 in
Weight	2.96 lbs
Fitment Type	Direct Replacement

Product Features

The FL3Z-9D683-C fuel tube assembly is built to match factory performance and installation requirements:

Routes fuel through the original F-150 fuel system layout
Fits the specified 2.7L, 3.5L, and 5.0L engine configurations
Includes the pressure transducer as part of the tube assembly
Connects at the original fuel line connection points
Follows the factory tube routing used on compatible F-150 trucks
Fits Crew Cab, Extended Cab, and Standard Cab configurations listed above

Application Notes

The FL3Z-9D683-C is intended for the factory fuel delivery system on the listed 2015–2017 Ford F-150 applications. Before fitting the tube, inspect the fuel connections, sealing points, line routing, and pressure transducer connector for damage or contamination.

Always verify the part number, model year, engine configuration, cab configuration, and fuel system layout before installation.
